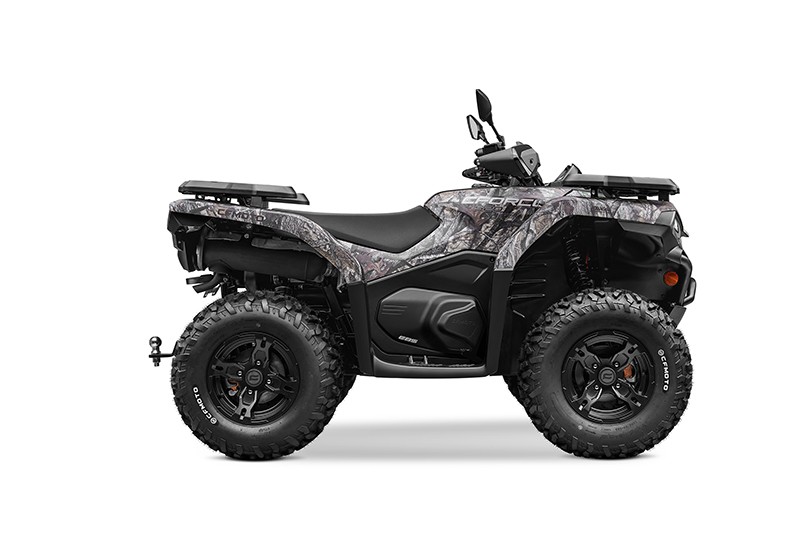

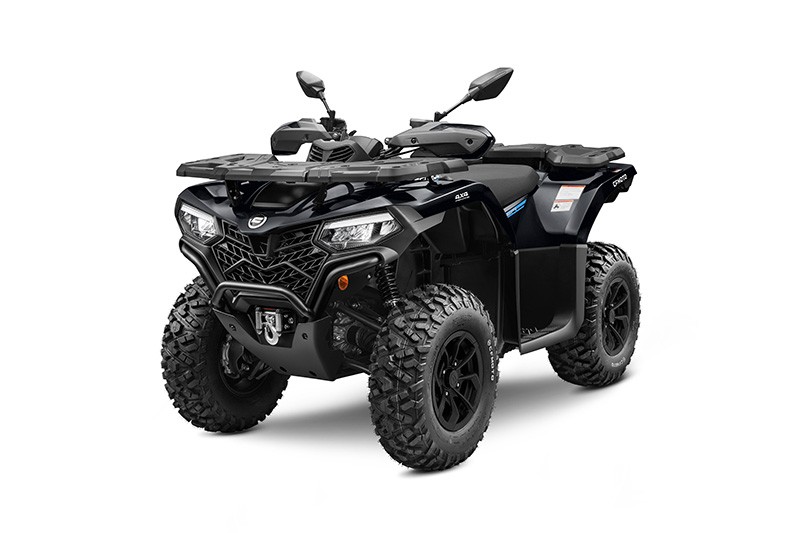

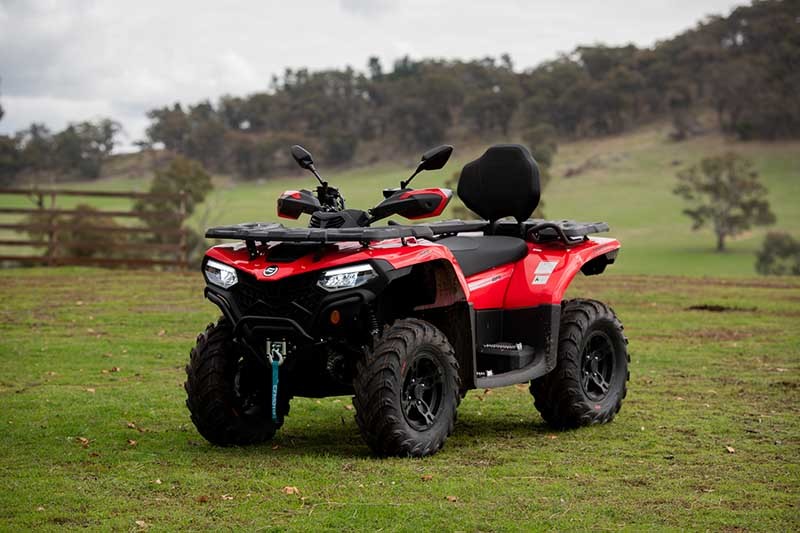

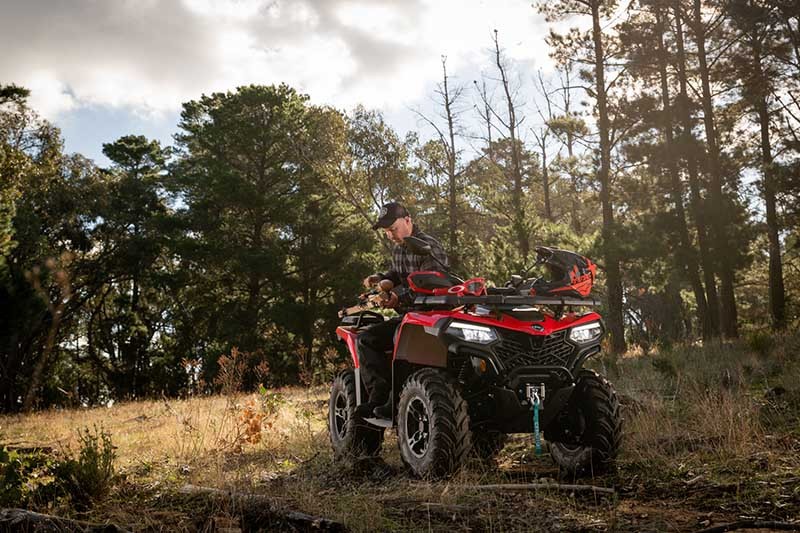

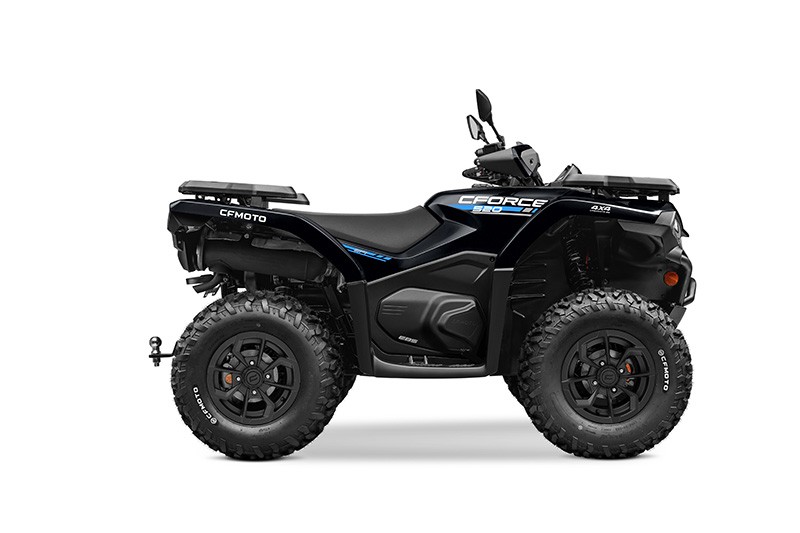

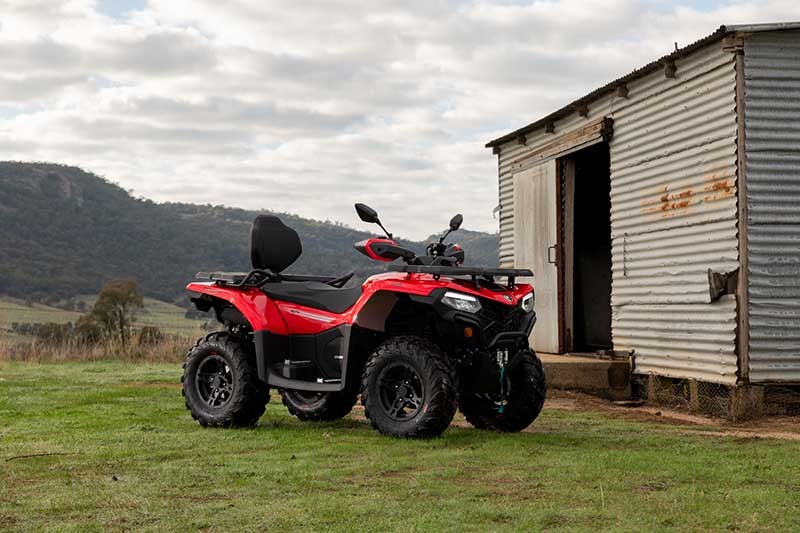

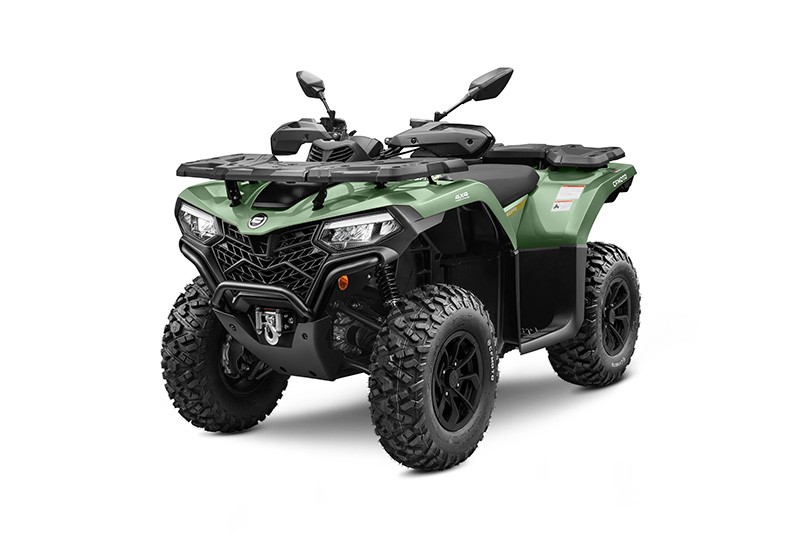

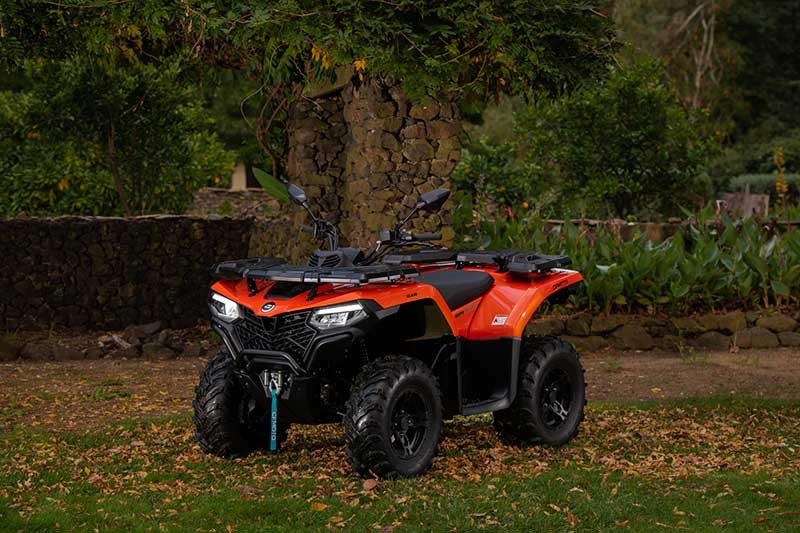

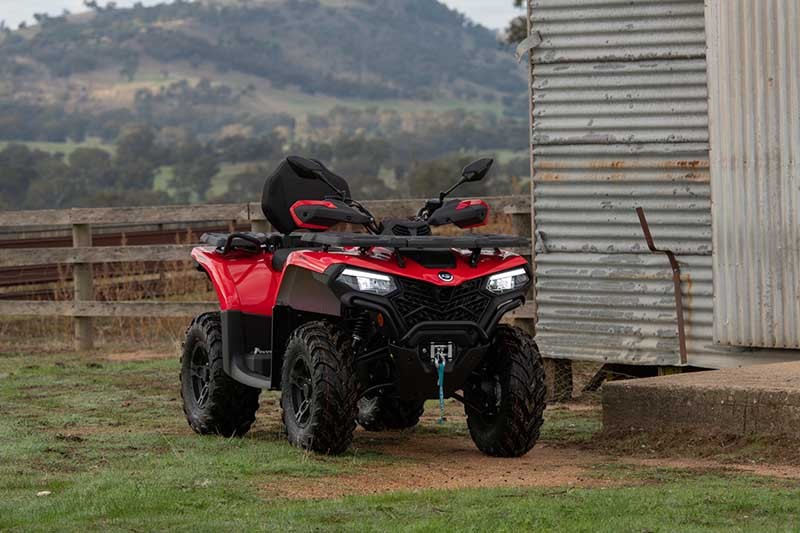

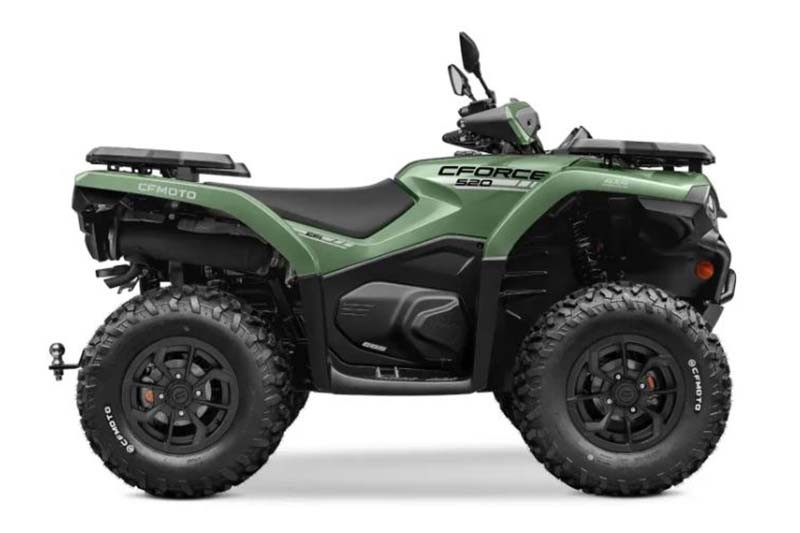

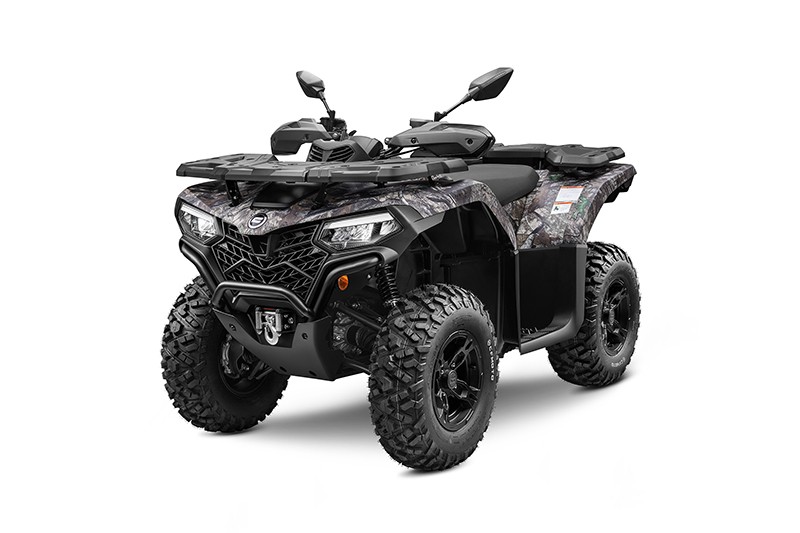

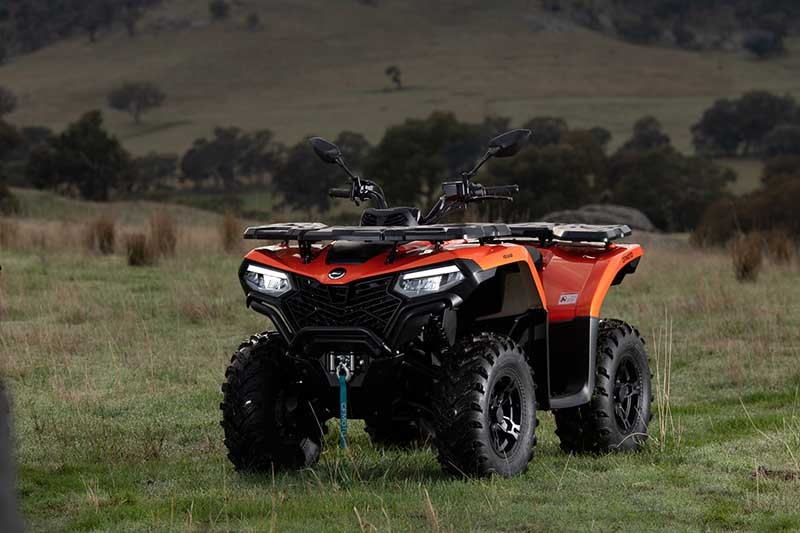

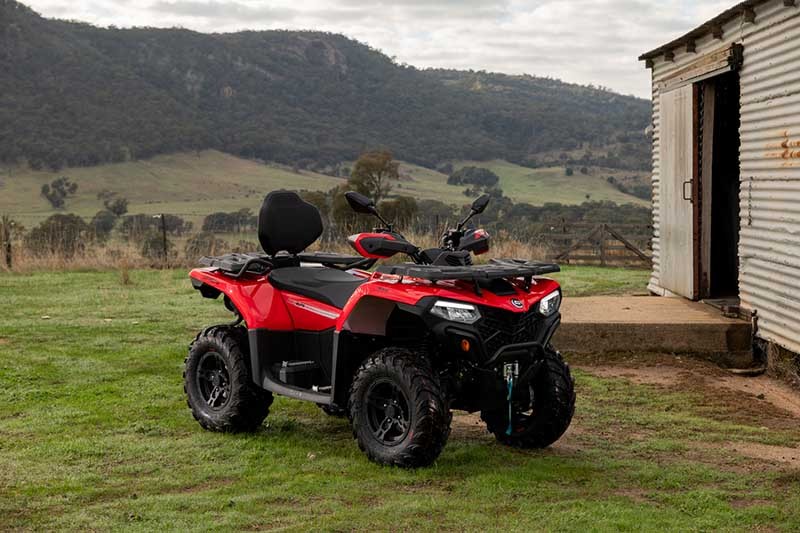

CFORCE 520


DETAILS

With its low weight and compact footprint, ease of maintenance, excellent durability, premium standard equipment and excellent price, the CFORCE 520 has become a very impressive mid-size ATV.

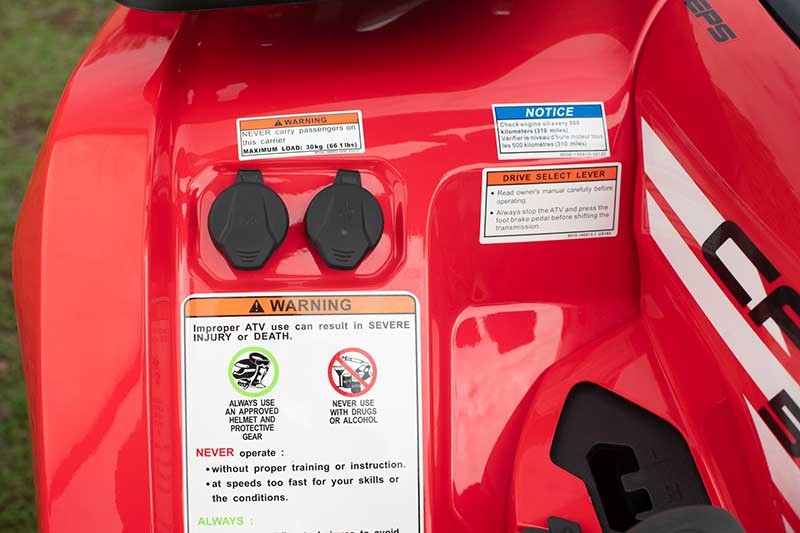

CFMOTO recommends that the rider should always wear a helmet, eye protection and other protective clothing.

Colour Options


The latest evolution of mighty CFORCE 520 now includes:

✔ CVTech drive and driven clutches with engine brake
✔ 1134 kg winch
✔ High-intensity headlights
✔ Integrated rear running lights

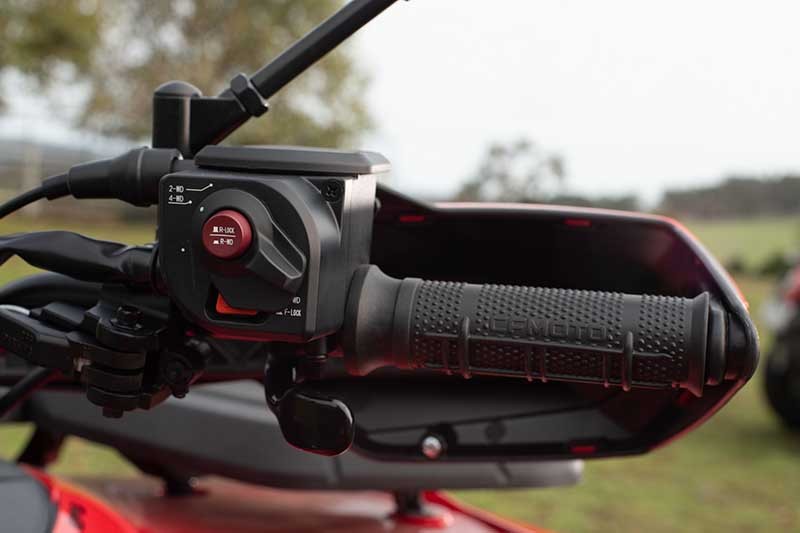

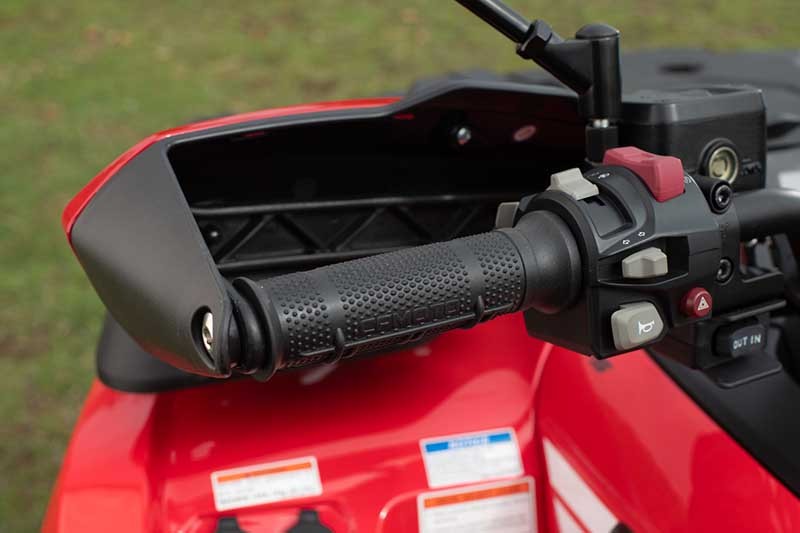

✔ 2WD/4WD thumb control with 4WD differential lock
✔ Running lights
✔ 802 kg towing capacity
✔ Double A-arm independent suspension

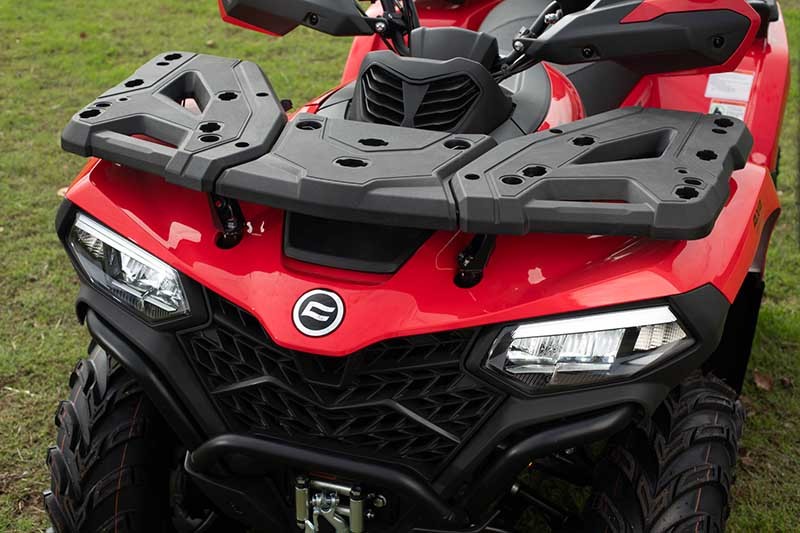

✔ Heavy gauge steel tube storage racks
✔ 2” hitch receptacle
✔ Electronic power steering
✔ Homologation: T3b Tractor

KEY FEATURES

✔ CVTech drive and driven clutches with engine brake
✔ 250mm ground clearance
✔ 802kg towing capacity
✔ High-intensity headlights

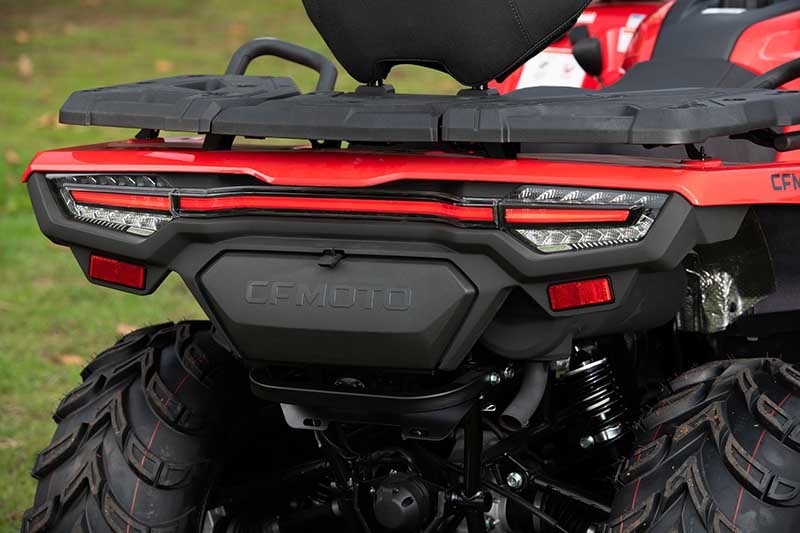

✔ Integrated rear running lights

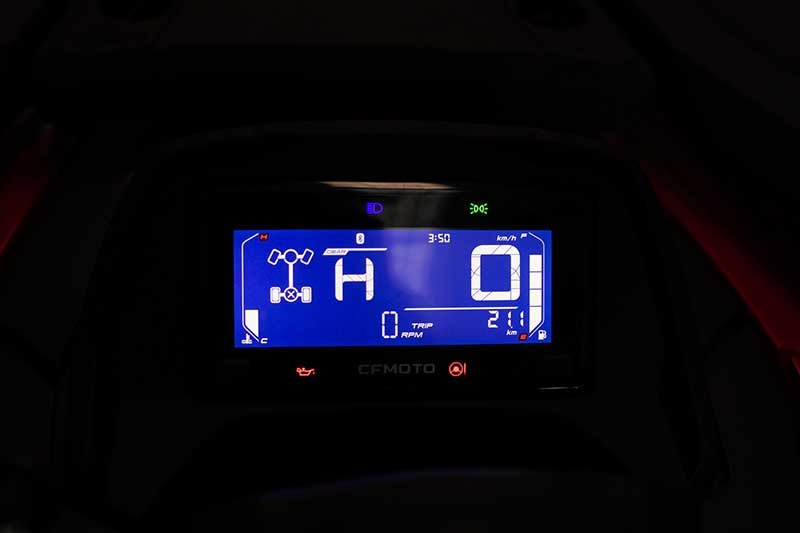

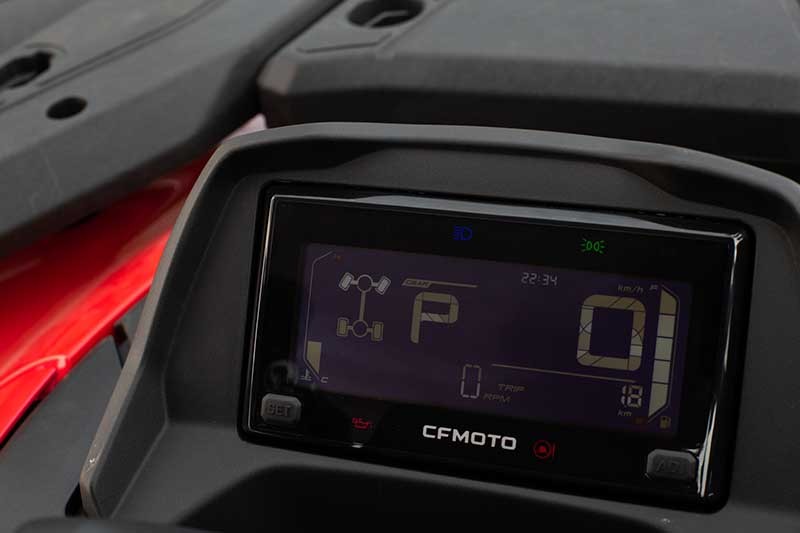

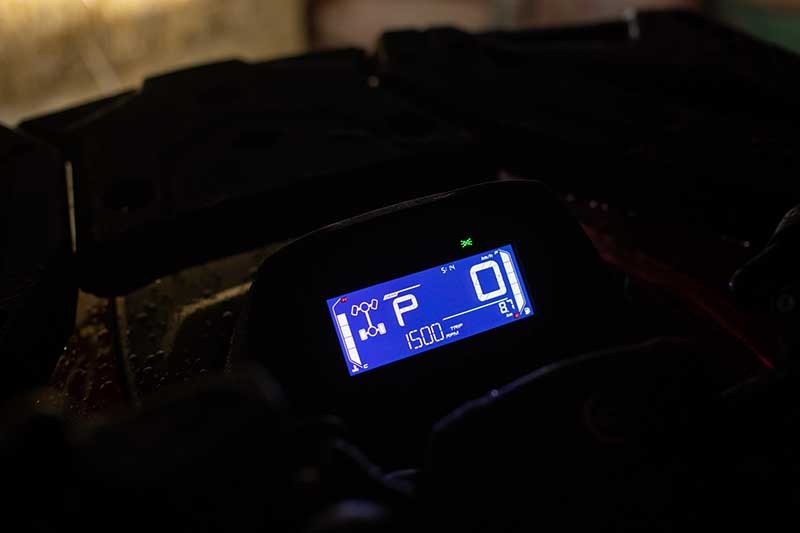

✔ Multi-function Digital Dash with speedometer, fuel, temp, odometer, clock and more

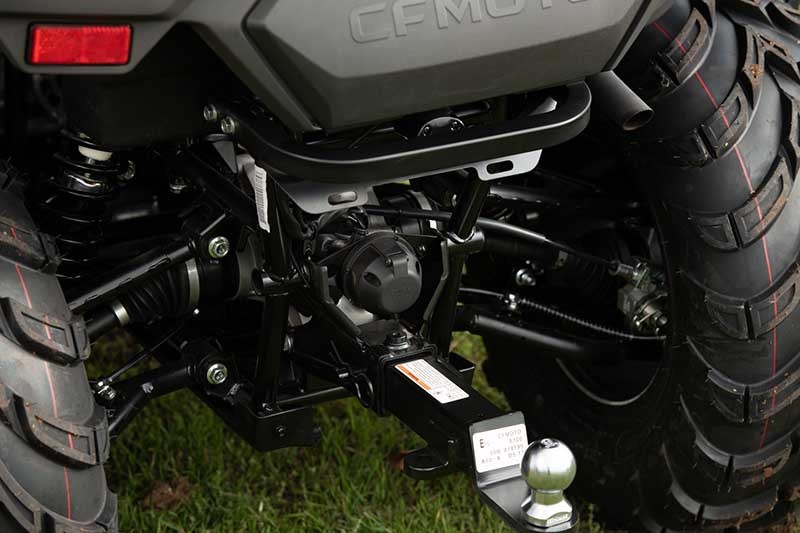

✔ 2” hitch receptacle
✔ 16.5L fuel tank

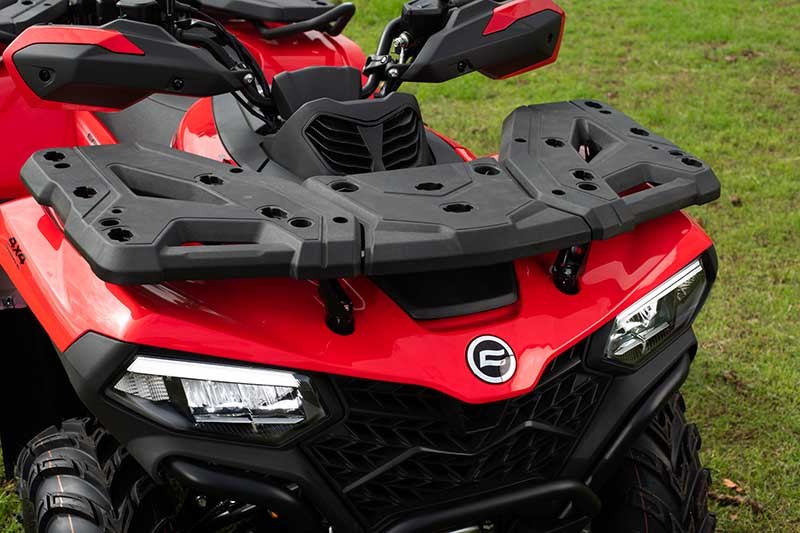

✔ Heavy-duty steel storages racks

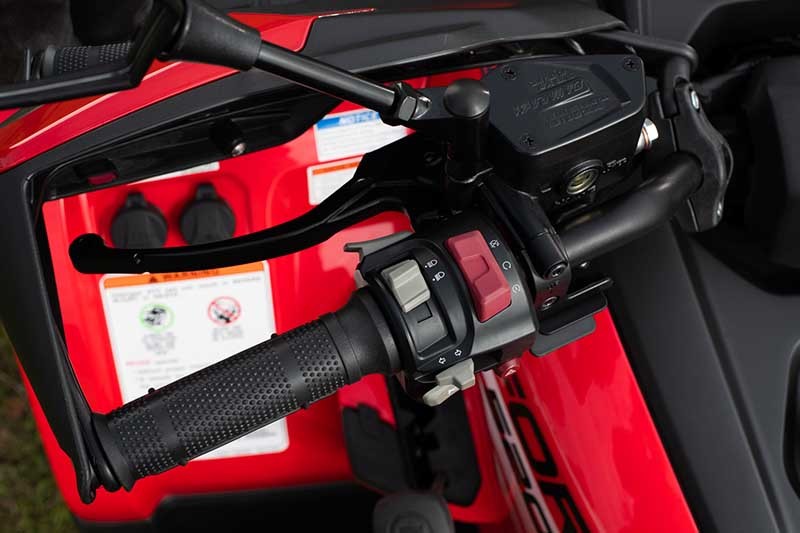

✔ 2wd/4wd thumb control with 4wd differential lock

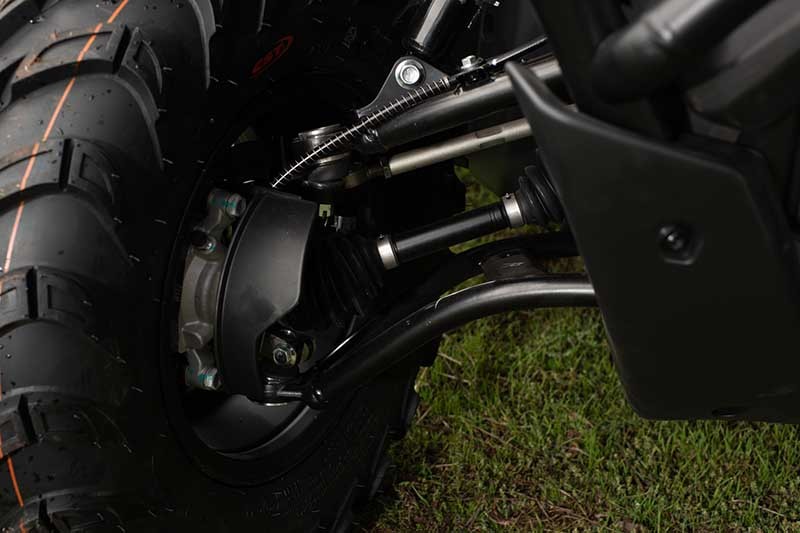

✔ Double A-arm independent suspension with coil over shocks
✔ Homologation: T3b Tractor

Engine

✔ Engine Type: Single-cylinder,Liquid cooled,4-stroke,SOHC,4-Valve
✔ Displacement: 495 cc
✔ Maximum Power: 25.5kW/6750 rpm
✔ Maximum Torque: 39 N·m/5750 rpm
✔ Fuel Supply: BOSCH EFI
✔ Ignition: ECU
✔ Transmission: CVT

Chassis

✔ Drive: Switchable 2WD/4WD
✔ Suspension: Front/Rear: Double A-arm independent suspension
✔ Shock Absorber: Front/Rear: Spring pre-load adjustable, oil damped

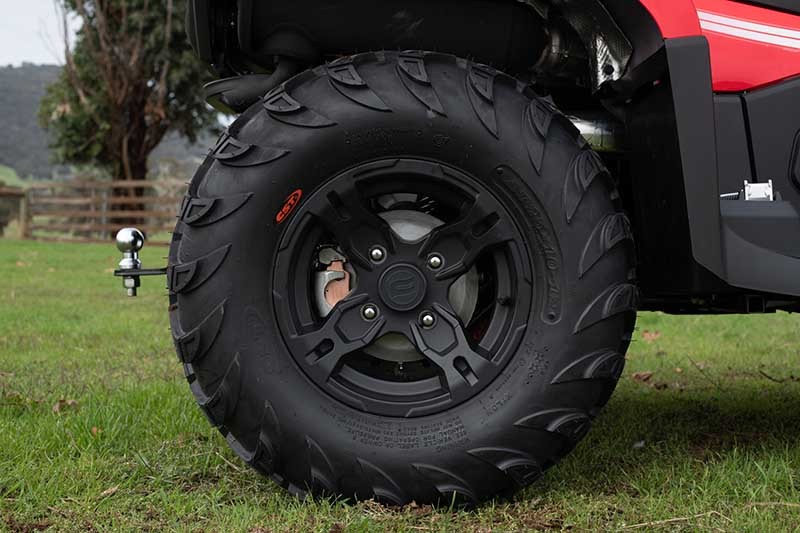

✔ Rim: Front/Rear: 12″

Dimensions

✔ Length x Width x Height: 2186×1157×1210 mm
✔ Wheelbase: 1288 mm
✔ Minimum Ground Clearance: 249 mm
✔ Minimum Turning Diameter: 5.6±0.5 m
✔ Dry Weight: 344 kg
✔ Towing Capacity: 802 kg
✔ Fuel Capacity: 16.5 L

Some images for illustration purposes only – please check specification and colour options with us prior to your order

FINANCE OPTIONS

Deposit upfront £999.17
VAT Upfront £1199.83
Borrow £5000
36 Monthly payments of £164 - Finance subject to terms, conditions and acceptance.

0% Finance Example
VAT upfront £1199.83
Deposit Upfront £1198.83
Borrow £4799.34
24 payments of £199.97 (2 payments are due upfront then 22 instalments) Finance subject to terms, conditions and acceptance. 0% option only available to business users.

EQUIPMENT DETAILS

  • CATEGORY:
    New CFMOTO ATVs & UTVs
  • NAME:
    CFORCE 520
  • MAKE:
    CFMOTO
  • MODEL:
    520
  • AVAILABILITY:
    ORDER NOW
  • PRICE:
    £5,999.17 +VAT
  • WISHLIST:
  • PRINT PDF:
  • RESERVE:
  • MAKE OFFER:
  • FINANCE:
  • VIDEO:
